PowerOptimal Elon® 100 Installation Manual v2.30

PowerOptimal Elon® 100 Installation Manual

Version number: 2.30

Version date: 2025/12/28

Enquiries: [email protected]

Address: Postnet Suite 21

Private Bag X21

Tyger Valley

7536

Please note: Always check the PowerOptimal website for the latest version of this manual.

Patented: ZA2019/02129

SAFETY WARNING

• Installation of the Elon® 100 should ONLY be performed by an electrical contractor registered with the Department of Labour (the so-called “wireman’s licence”) and strictly according to the installation instructions in this manual. The electrician should provide you with a supplementary Certificate of Compliance (CoC) once installation is completed.
• We strongly recommend that you use a reputable and experienced solar photovoltaic (PV) system installer to install your solar PV modules.
• Solar PV modules exposed to the sun are live (i.e. will produce electricity) and can give an electric shock. Special care should be taken and only trained solar PV installers should install the modules.
• Do not attempt to alter or service the electrical installation, or open the Elon® 100 unit or controller for any purpose.
• Use the Elon® 100 only for its intended purpose.
• Always make sure that every wiring connection is properly tightened.
• Do not earth either of the solar module wires (but do earth the frames).
• All installation wiring should be at least 2.5mm².
• Avoid coiling, since DC switching can create damaging spikes.
• Keep all wires as short as possible.

Refer to the PowerOptimal website for the following:

Table of Contents

Table of Contents 3

1. Required tools 4

2. Basic wiring diagram 5

3. Solar PV array installation 8

4. Elon® 100 installation 10

5. Element installation (retrofit) 18

Appendix A. Basic Troubleshooting Guide for Electricians 20

Appendix B. Solar yield 21

B1. Solar irradiance levels 21

B2. Geographic features 22

B3. Azimuth / horizontal angle 22

B4. Inclination or tilt angle 22

B5. Shading 22

B6. Ambient temperature 23

B7. Minimum distance from roof edges 23

Appendix C. Deciding on Size of Solar Array 24

Appendix D. PV array and geyser (water heater) element matching 28

Appendix E. Technical Specification Summary: Elon® 100 29

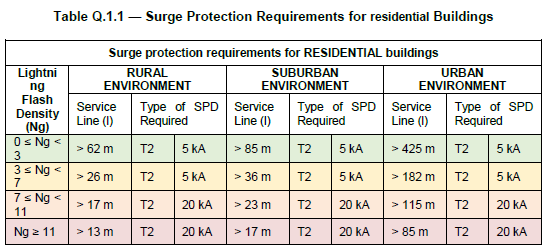

Appendix F. Surge Protection Device (SPD) Recommendations 30

F1. SANS 10142-1 The wiring of premises Part 1: Low-voltage installations 30

F2. Draft standard SANS 10142-3 Proposed Interim Guideline for the wiring of LV grid-embedded PV installations not exceeding 1000kVA in South Africa 31

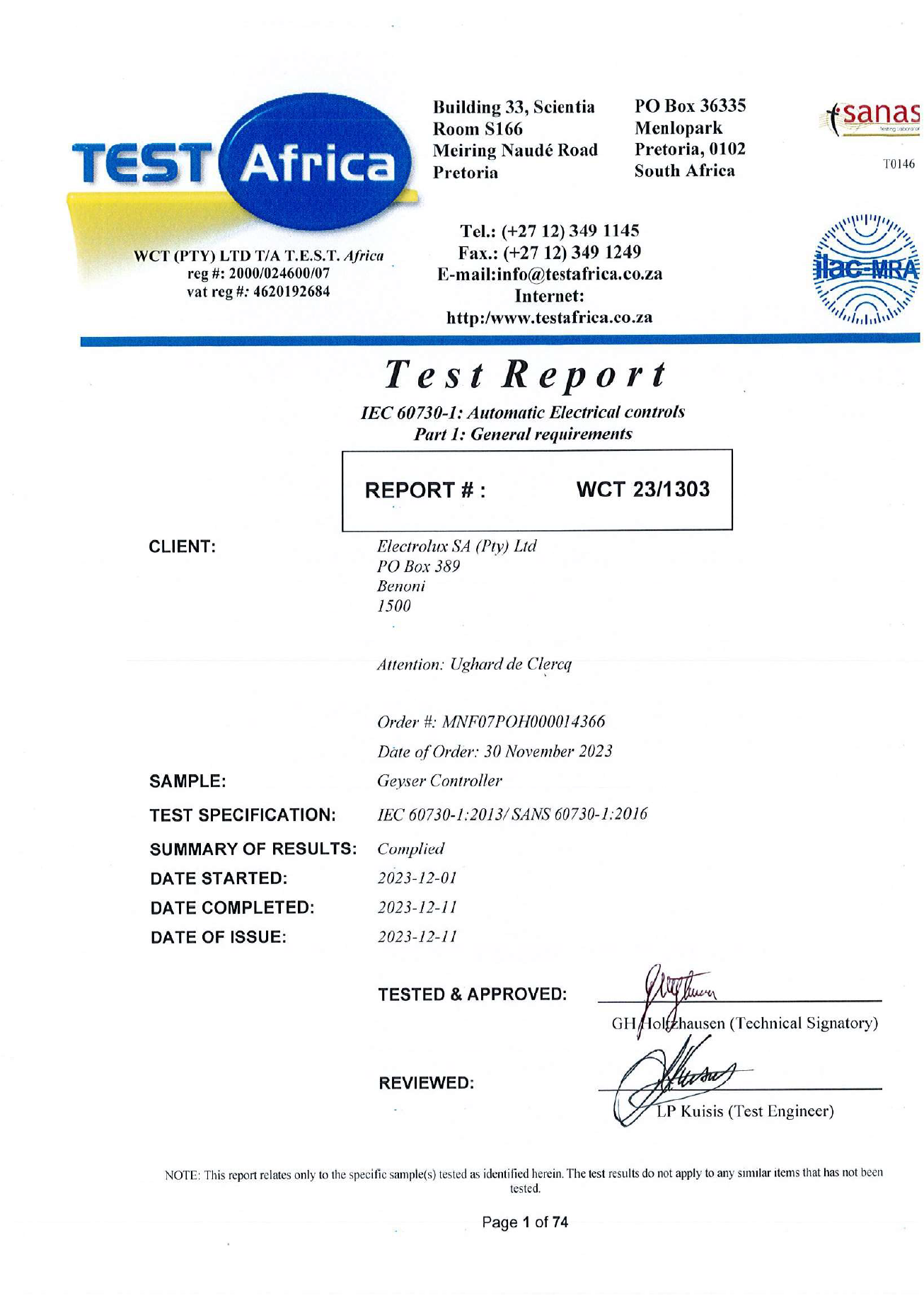

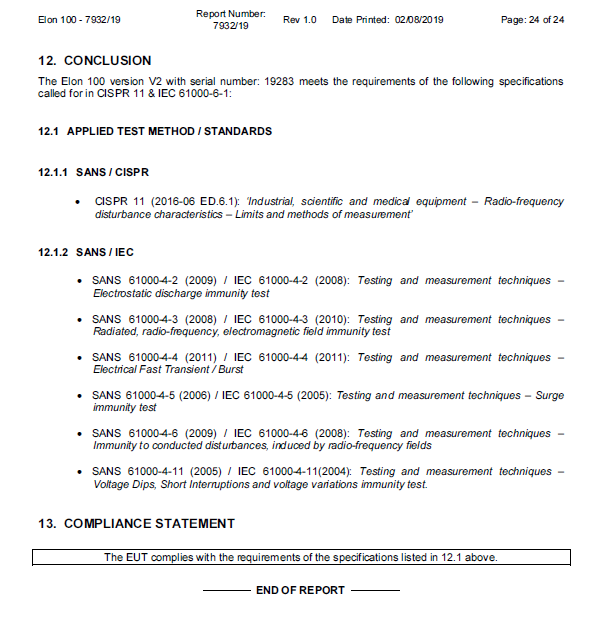

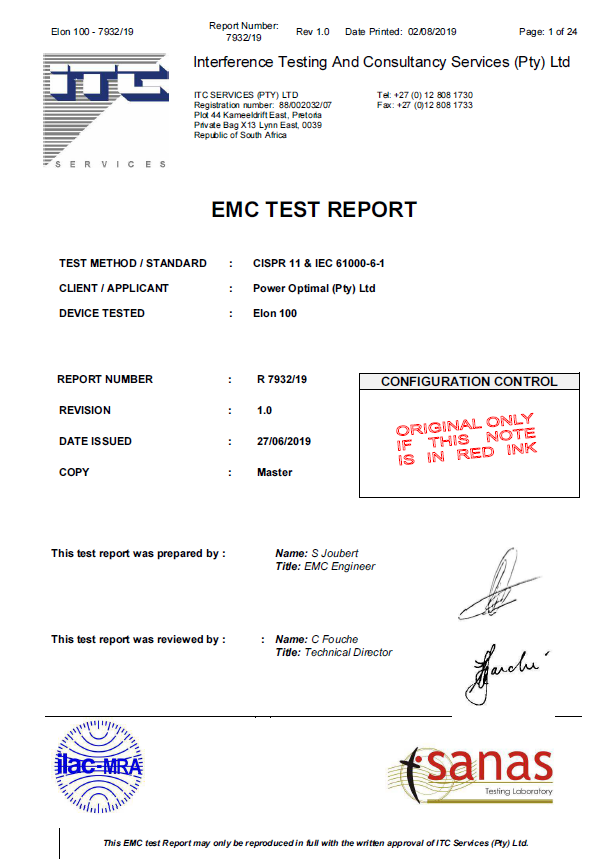

Appendix G. IEC/SANS and EMC Test Certificates: Elon® 100 34

Appendix H. Warranty 39

Appendix I. Terminology 40

Notes 41

1. Required tools

The following tools are required for the installation. Use insulated tools wherever applicable.

• Solar modules (mounting) - please refer to solar module / mounting installation instructions – the below is only a guideline:
  • Cordless screwdriver with bits
  • Drill
  • Set of drill bits (wood, steel, stone)
  • Set of screwdrivers
  • Set of Allen (hex) keys
  • Tape measure
  • Grinder (tile roof installations)
  • Permanent marker
  • Chalk
  • Hammer
• Solar modules (electrical):
  • AC/DC Clamp meter
  • Side-cutting pliers
  • Screwdriver set
  • Crimping tool
  • 4 mm² wire (double insulated) (or other size as determined by solar PV voltage and wire length)
  • Cable ties
• Elon® 100 - the following additional tools:
  • 2.5 mm² panel wire

2. Basic wiring diagram

Note 1: Both AC & DC circuit breakers or isolators must be installed within 1.5m of the geyser (water heater), line of sight.

Note 2: Surge Protection Device (SPD) only required in higher lightning strike density areas (such as parts of Gauteng and Mpumalanga), or where the DC cables are long. See Appendix F.

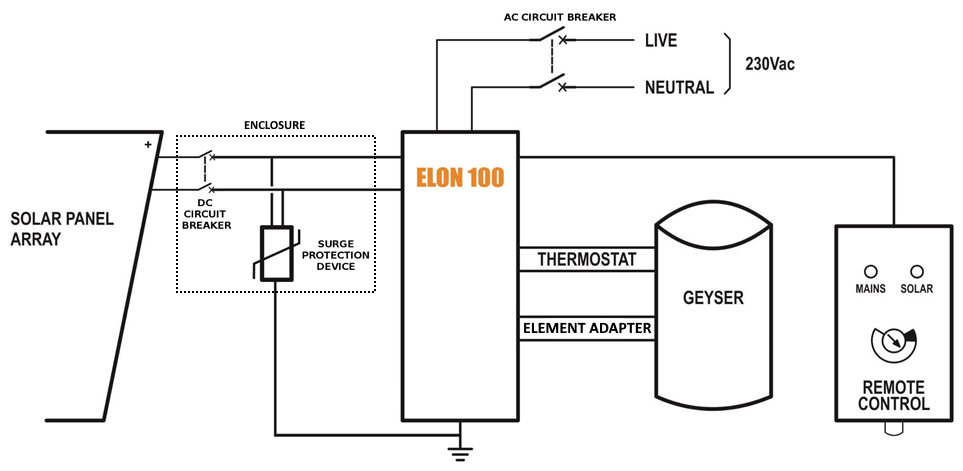

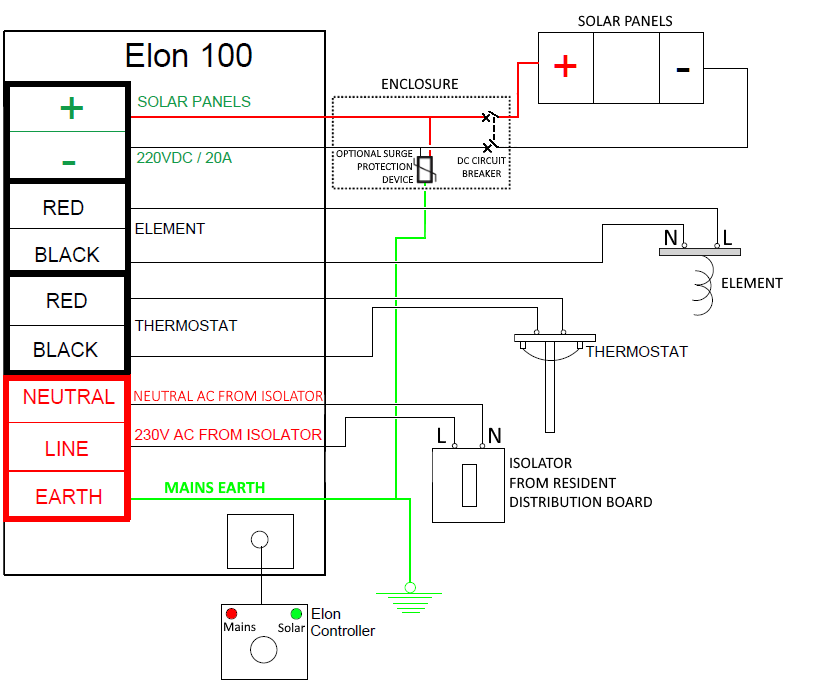

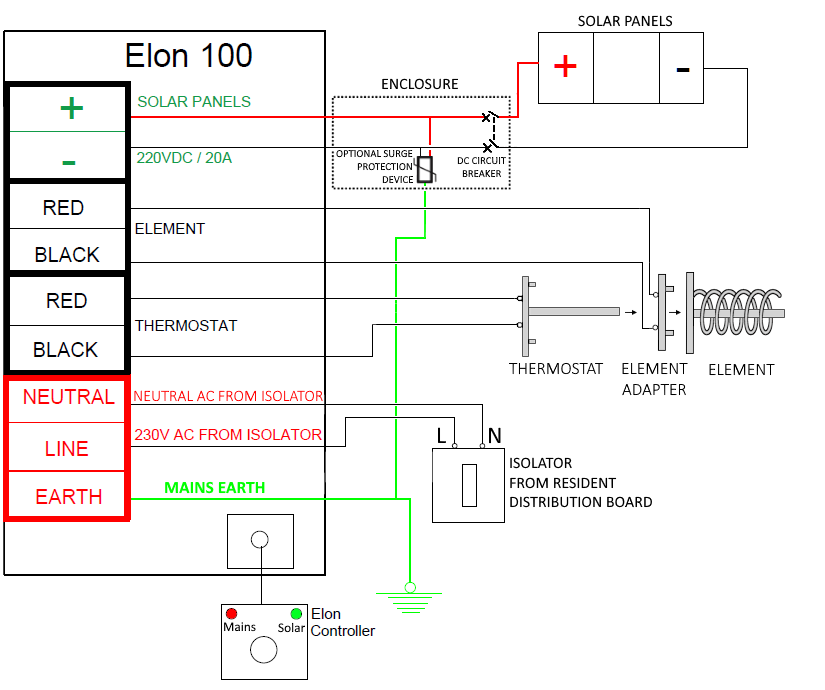

Wiring detail: Elon 100 with wiring kit (see Figure 4.1)

Note: Surge Protection Device (SPD) only required in higher lightning strike density areas (such as parts of Gauteng and Mpumalanga), or where the DC cables are long. See Appendix F.

Wiring detail: Elon 100 with element adapter (see Figure 4.2)

Note: Surge Protection Device (SPD) only required in higher lightning strike density areas (such as parts of Gauteng and Mpumalanga), or where the DC cables are long. See Appendix F.

3. Solar PV array installation

Modules should only be installed by a trained solar PV installation technician. Array position and orientation have a major impact on power production (see Appendix B).

Review the instructions from your solar PV module supplier / manufacturer on installation.

Please note: Your installer should comply with SANS 10142-1 (Standard for low voltage installations) and SANS 60364-7-712 when doing your solar PV installation. If they are not well familiar with these standards, you should look for a different solar PV installer.

SAPVIA (South African Photovoltaic Industry Association) has made available an excellent guide to solar PV installations. See:

https://www.pvgreencard.co.za/Solar%20PV%20Guidelines%20-%20Digital%20‌Spread%20High-res.pdf

NB: Refer to Appendices C & D for guidelines on selecting the right size solar PV array for the user requirements, and for correctly matching the solar PV array and the geyser element.

The below installation steps are a general guide only – compliance with the abovementioned standards is compulsory.

1. A critical starting point is safety gear: ensure that all installers wear a helmet and insulated safety gloves, as well as fall protection safety gear if work will be done on a roof or elevated area.
2. The solar PV array should only consist of one string of 2 to 6 modules in series, or two parallel strings 2 to 5 modules each. Do not exceed the DC voltage or current ratings of the Elon® 100 (240V DC and 20A DC) under any circumstances. Do not exceed the maximum power rating of 4 kW_p.
3. Attach bracket / mounting structure to roof. Use mounting structure recommended by solar module supplier for roof type and size of solar modules.
4. Fix the solar PV modules to the mounting structure whilst connecting the module cables to each other.
5. If practical, cover the modules to ensure that there is no potential for electric shock whilst installing the system.
6. Ground the mounting structure only.
7. Install the wiring from the solar PV array to the Elon® 100 unit in the ceiling space. Ensure circuit breakers / isolators are in the “Open” position. Installation of a Surge Protective Device (SPD) between the solar PV array and the Elon® 100 is required in high lightning strike areas, such as parts of Gauteng and Mpumalanga. See Appendix F for more information.
8. Last step is to connect the array to the rest of the wiring, making sure that both the positive and negative wires are fully isolated from ground and keeping circuit breakers / isolators in the “Open” position.

Some “DO’s & DON’T’s” when installing solar PV arrays:

Your solar PV installer should not make any of these basic mistakes, but they are listed here just in case.

1. DO earth the PV array structure.
2. DO isolate the wires from the PV array structure.
3. DON’T use different sizes, types or specifications of modules together in the same string or array.
4. DON’T install solar arrays where they will be partially shaded during any season of the year if it can be avoided at all.
5. DO install the arrays so that there is space for inspection or maintenance when needed.
6. DO use cabling of the correct size for your solar array.
7. DON’T install the solar array flush with your rooftop. Use struts / brackets that ensure an unrestricted air gap of at least 40 mm between the roof and the modules.
8. DON’T walk on the modules.
9. DO ensure that connectors are kept clean and away from water.
10. DON’T leave exposed modules in short circuit.
11. DO ensure that all connectors are securely fastened.
12. DON’T exceed the voltage ratings of any components.
13. DO properly route and secure all cables.
14. DON’T coil cables.

4. Elon® 100 installation

A note on poor geyser installations

Poor geyser installations can cause excessive heat loss, which increases electricity cost with no benefit. Check for the following:

• There should be lagging (insulation) installed on at least the first meter of the hot water outlet pipe and the cold water inlet pipe.
• If the hot water outlet pipe is routed upwards from the geyser, a U-bend heat trap has to be installed, otherwise natural hot water convection (circulation) will cause excessive heat loss from the geyser
• The geyser itself should have good quality insulation. (All new geysers since 2013 have had to comply with more stringent insulation requirements and should have good quality insulation.)
• If there is a solar thermal system still connected to the geyser, it is strongly recommended to uninstall it, or at the very least ensure that there are closed shut-off valves on both entering and exiting pipes.
• If there is a hot water circulation system installed in the house, good insulation along the whole pipe length is critical. Circulation times should also be kept to a minimum.
• It is NOT recommended to use a geyser timer together with the Elon 100 system.

1. Isolate the geyser – switch off the geyser circuit breaker at the main electrical distribution board (DB) AND switch off the geyser isolator at the geyser.
2. Confirm with a multimeter that there is no voltage across the wires.
3. Install circuit breaker (or isolator and fuse) for solar PV (DC) supply. Also install AC supply isolator / circuit breaker if there is none. NB Ensure that the DC circuit breaker is rated for the DC voltage and current of the installed solar PV array.
4. The circuit breakers / isolators must be installed within 1.5m of the geyser AND must be line of sight / visible (i.e. do not install them at the back of the geyser).
5. The DC wires must not be earthed – i.e. they must be fully isolated from earth. Do NOT test with a Megger.
6. Keep the DC wires as short as possible.
7. Avoid any coils in DC wires.
8. Recommended wiring size is at least 2.5 mm². Use panel wire for all connections to the Elon® 100.
9. Install the Elon® 100 unit according to wiring diagram (see Section 2).

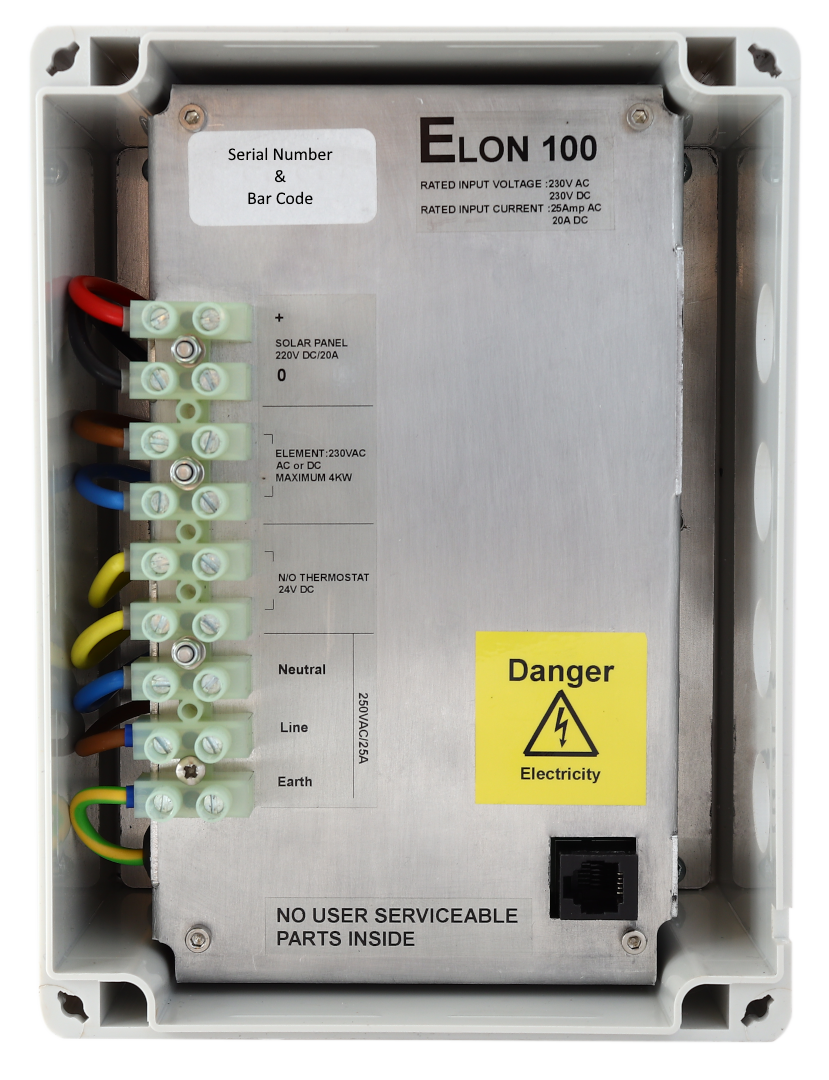

   1. Mount the Elon® 100 unit close to the geyser and protect from outside elements. The maximum wire length between Elon® 100 and geyser is 3 m.
   2. It is recommended to install the Elon® 100 oriented with wiring exiting downward to minimise the risk of water ingress. The enclosure is IP65, but the glands and wires represent a potential water ingress point if not installed correctly.
   3. Mount the controller (the small black remote control) inside or next to the main DB in the house or in another convenient and accessible location (for example the garage). Double-sided mounting tape and Genkem contact adhesive work well for most surfaces. When inserting the controller wire into the Elon® 100 unit, make sure the connector clicks into place.

Note: if installing the controller outside or in a humid or corrosive area (such as by the coast), install the controller in a weatherproof box, such as a weather proof plug box. Apply silicon at the bottom (cable entry point).

• 1. Connect the Elon® 100 and thermostat last.

You will have been provided with either a wiring kit (Figure 4.1 - FOLLOW INSTRUCTIONS 9A) OR an element adapter (Figure 4.2 - FOLLOW INSTRUCTIONS 9B). See also the training videos on how to install either of these here: https://www.poweroptimal.com/elon-100-training/.

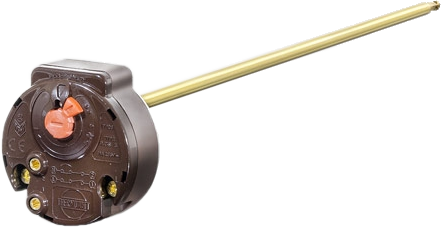

Figure 4.1 Wiring kit for TSE & Thermowatt thermostats

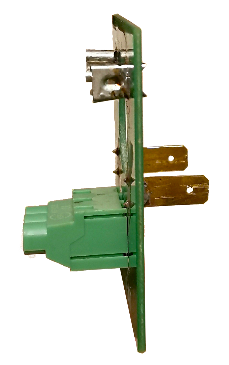

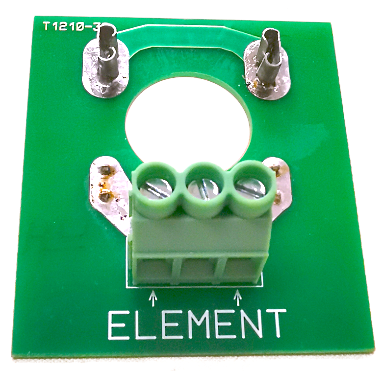

Figure 4.2 Element adapter for TSE & Thermowatt thermostats (front & side view)

9A WIRING KIT INSTRUCTIONS (follow these if you have the wiring kit as per Figure 4.1)

Note: As per the wiring diagram, the thermostat and element should be connected to the Elon® SEPARATELY (independently).

• 1. For TSE and Thermowatt (RTS) thermostats, connect the connectors marked “thermostat” on the Elon® directly to the two screw terminals on the thermostat and short the two male terminals at the bottom of the thermostat together, using the bridging wire with female connectors supplied with the Elon® 100 (Figures 4.3 and 4.4). (Less than 20 mA DC current will flow through this wire – it is a sensing current only.) There must be no connection between the thermostat and the element.

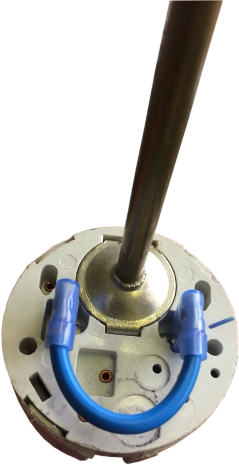

Figure 4.4 Bridging wire fitted to TSE Thermostat

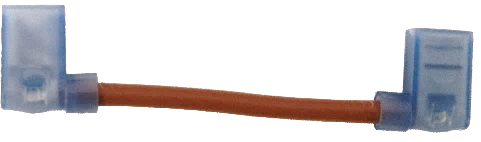

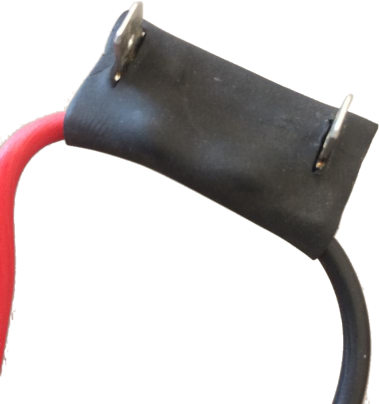

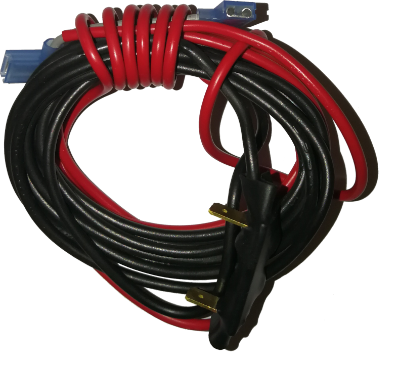

Figure 4.3 Bridging wire for TSE & Thermowatt thermostats

• 1. Connect the two element terminals directly to the connectors marked “element” on the Elon®. For flange-type elements, use the supplied wiring with element connector (Figures 4.5 and 4.6). Make sure that the element connector fits tightly into the element and that the two male spade terminals of the connector are slotted correctly into the female terminals of the element. Crimp both terminals (you can do this through the plastic cover) to ensure a tight fit on both sides.

Figure 4.5 Element connector

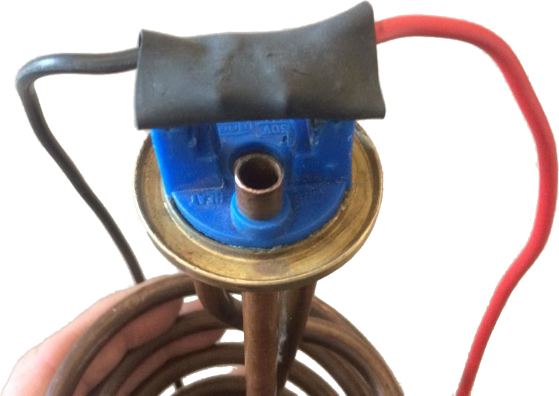

Figure 4.6 Element connecter fitted to flange-type element

• 1. Slide the thermostat (with bridging wire installed) into the thermostat pocket in the element as deep as it can go. (Slide it in rotated 180 ° from its normal orientation.)
  2. Continue with instructions from STEP 10.

9B ELEMENT ADAPTER INSTRUCTIONS (follow these if you have the element adapter as per Figure 4.2)

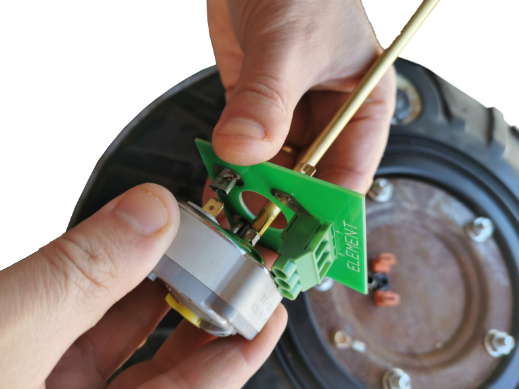

1. Plug the thermostat into the element adapter as per Figure 4.7, ensuring a snug fit. Check that spade terminals enter female terminals correctly.

Figure 4.7 Thermostat plugged into element adapter

Figure 4.8 Thermostat & element adapter plugged into element

1. Plug the thermostat + element adapter into the element as per Figure 4.8, ensuring a snug fit. Tug on each side to confirm correct fit.
2. Wire the thermostat screw terminals directly to the connectors marked “Thermostat” on the Elon.
3. Wire the element adapter directly to the connectors marked “Element” on the Elon.
4. Continue with instructions from STEP 10.
5. Set the thermostat to the desired temperature (60 °C maximum). Note that vertically installed geysers have higher temperatures at the top than the bottom (this is called thermal stratification). The temperature difference is about 3 °C per meter. Reduce the setpoint temperature in vertically installed geysers to about 5 °C lower than for a horizontally installed geyser.
6. Attach labels included with the Elon 100 (see Figure 4.9 on next page):
   1. Attach "Dual Supply" labels to the AC isolator and the DC circuit breaker (or isolator).
   2. Attach "Warning – Photovoltaic Power Source" label to the DC wiring conduit in a clearly visible position.
   3. Attach "Installation Diagram" label close by the geyser in a clearly visible position – for example on a rafter. (Do not attach it directly to the geyser, as it will disappear if the geyser is replaced.)
7. Once installation is complete, do the following:
   1. Turn the control dial to "SOLAR ONLY".
   2. Switch on the AC & DC circuit breakers or isolators.
   3. Remove the covering from the solar modules.
   4. Switch on the geyser circuit breaker at the main DB.

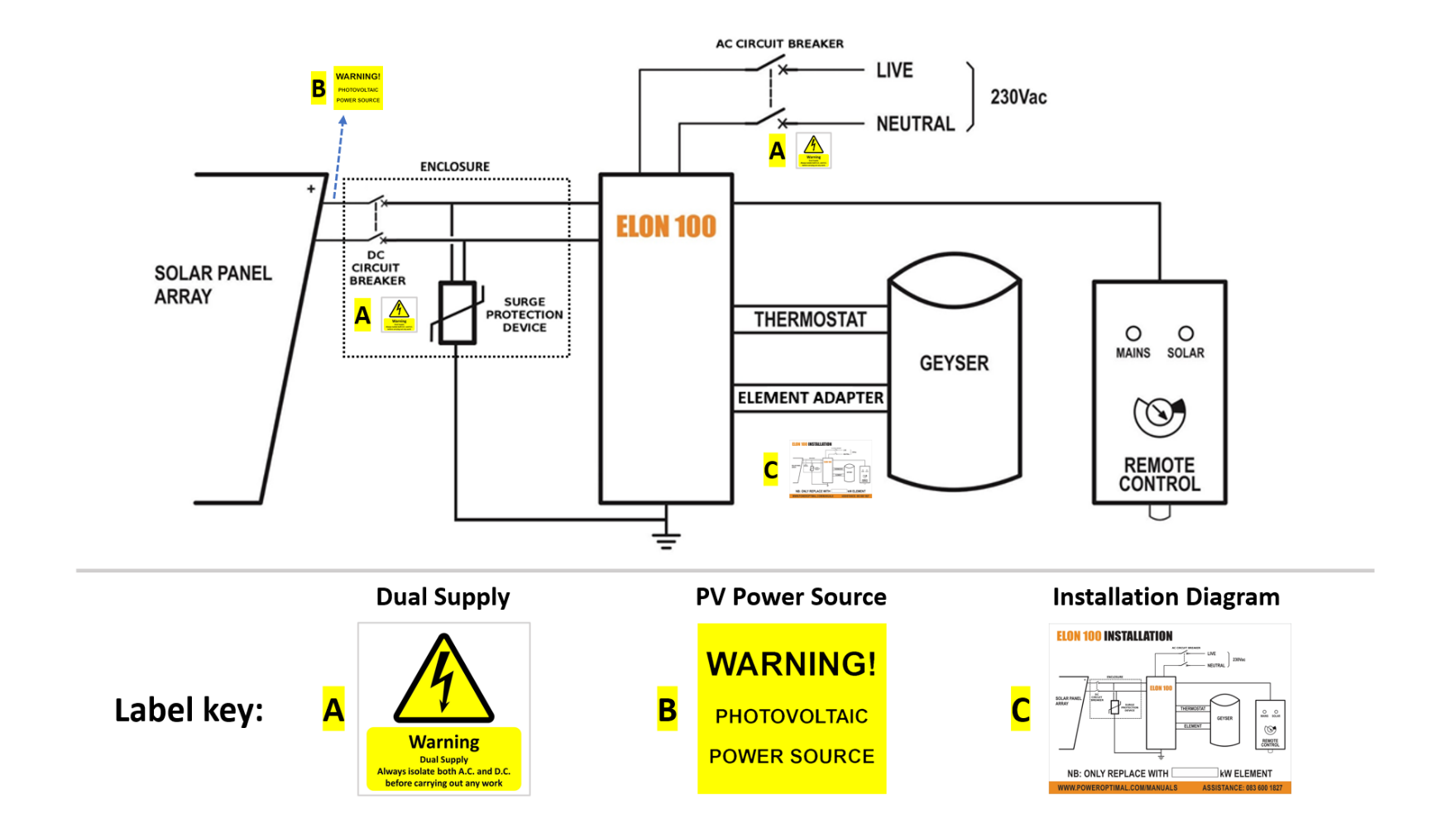

Figure 4.9 Label positions (see step 10 on previous page)

1. Check that the Elon® 100 unit is operational (refer to LED lights on controller – see next page).
   1. Confirm solar PV array supply voltage and DC power to geyser when thermostat is closed. The Elon® 100 will switch DC power to the geyser approximately 10 to 15 seconds after DC power to the Elon® has been switched on (if there is enough sunlight). (If thermostat is not closed, open hot water tap in house until thermostat closes.)
   2. Test mains power supply by turning the dial to "MAINS ONLY". The red light should start flashing (except if geyser is already at thermostat setpoint temperature). NOTE THAT THE ELON® WILL ONLY SWITCH TO MAINS 5 MINUTES AFTER MAINS POWER SWITCH-ON OR RECONNECTION. This is to allow grid power to stabilize after a power failure.
   3. Confirm that no power is supplied to geyser element when thermostat is open (turn thermostat set point to lowest setting).
   4. Set thermostat back at desired temperature (60 °C maximum).
2. Set control dial to setting “2” (the 6 o' clock position). (For new property development installations, you can set the control dial to setting “1” (the 9 o’clock position). This ensures that new residents can settle in before deciding on the setting that suits their habits best.)

Note: if doing any maintenance, rewiring or disconnecting the Elon® 100 or geyser element for any reason, it is good practice to first switch off both the AC & DC circuit breakers / isolators, and then disconnect one of the wires between the Elon® 100 and thermostat before disconnecting the rest of the wires.

Please note: DO NOT install a separate timer on the AC side to try and regulate mains power use. Use only the Elon’s control dial to control mains power use. If you install a second timer, it will work at cross-purposes with the Elon and you will reduce performance and hot water availability.

Final step: hand over the laminated Quick Reference User Guide (included in the box) to the household (or leave it in a prominent place for them to find such as the kitchen counter).

The Mains & Solar indicator lights indicate the following conditions:

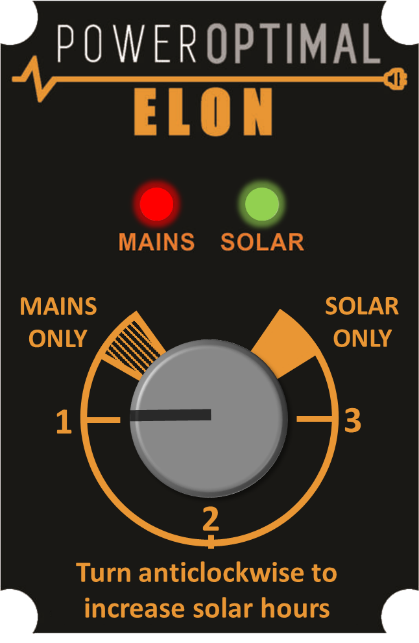

The control dial sets the mains & solar times as follows:

* Times are approximate – will vary slightly with season and location

5. Element installation (retrofit)

If you need to exchange the element on an existing geyser, please follow the instructions provided by the element supplier.

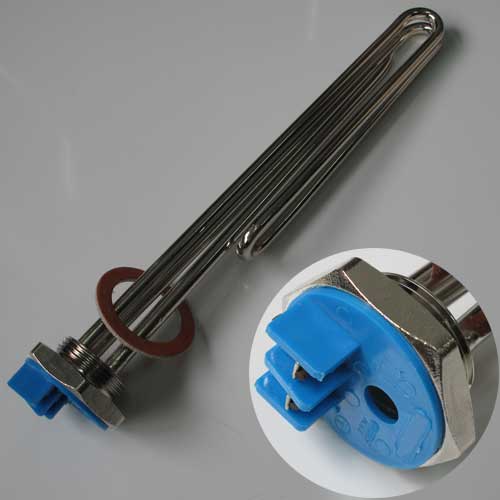

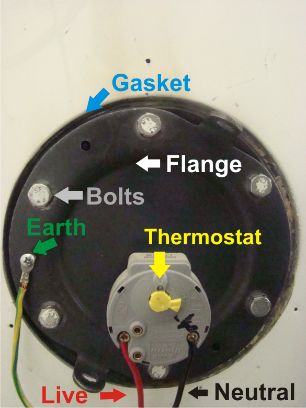

There are two main types of geyser heating elements: screw-in and flange type. There are three main types of thermostats: VKF-11, TSE and Thermowatt (the TSE and Thermowatt thermostats are quite similar). The below table provides a guide to Elon® compatibility with the different elements and thermostats.

Element type	Compatible thermostat type	Comments
Screw-in element:	VKF-11 thermostat:	Element & thermostat have separate electrical connections, so each can be connected (wired) separately to the Elon®. Thus, this element-thermostat combination is directly compatible with the Elon®. (No need to use the bridging wire or element adapter supplied with the Elon® unit.) The thermostat pocket in the element is the right size for the VKF-11 thermostat. Do not connect the thermostat in line with the element. Connect the two thermostat wires to the two terminals marked “thermostat” on the Elon 100 unit. Connect the element separately to the two terminals marked “element” on the Elon 100 unit.

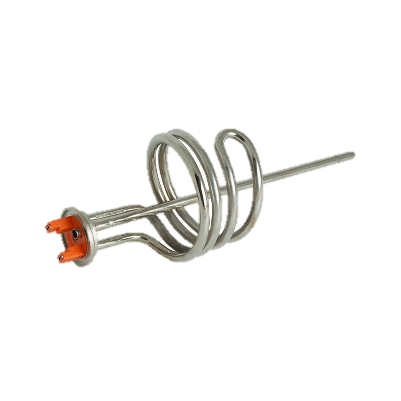

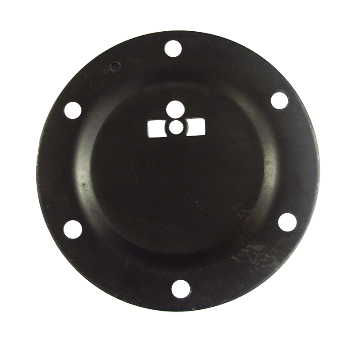

Spiral element (flange type) with smaller diameter thermostat pocket:	TSE thermostat: Thermowatt (RTS) thermostat:	The spiral element generally has a smaller thermostat pocket than the screw-in element. The TSE and Thermowatt (RTS) thermostats fit into this smaller pocket. The VKF-11 thermostat requires a larger pocket and does not fit into standard spiral element pockets. The TSE and Thermowatt thermostats normally clip directly into the element, but this won’t be the case when the Elon® is connected. Use the wiring kit or element adapter supplied with the Elon® (see Figures 4.1 and 4.2 above) to connect the Elon® to these thermostats and elements.

Appendix A. Basic Troubleshooting Guide for Electricians

NOTE: This Troubleshooting Guide is intended for electricians and not general users. Users should please refer to the User Manual, which can be found at www.poweroptimal.com/manuals.

Things to Remember

• The red mains LED will only start functioning once stable mains voltage between 190 and 260 V AC is present for more than 5 minutes. (In other words, the Elon® will only allow mains power to the element 5 minutes after mains connection or switch-on.)
• Solar power is only recognised 40 seconds after active solar panels are connected to Elon®.
• An open thermostat (water at correct temperature) measures between 11 and 14 V DC across the “thermostat” terminals on the Elon®. Polarity across these terminals is not important.
• A closed thermostat (cold water) measures 0 V across the “thermostat” terminals on the Elon®.
• How to switch on solar power to element: With enough solar energy (check at solar terminals), solar power will be routed to the element within 15 seconds after the thermostat closes and the controller dial is set to “SOLAR ONLY”. A green flashing LED indicates this condition.
• How to switch on mains power to element: Turn control dial to “MAINS ONLY” and, if the thermostat is closed, mains power will be directed to the element indicated by a red flashing LED.
• Note: Once the dial has been turned to “MAINS ONLY”, it will complete a full mains heating cycle (until the thermostat opens). Turning the control back to “SOLAR ONLY” at this point will not immediately switch the unit back to solar power. It will only switch back again after the mains heating cycle is completed (i.e. the thermostat opens) and the thermostat then closes again. You can finish the mains heating cycle faster by reducing the thermostat temperature setting until the thermostat opens. Test solar power first.
• Fast flashing red / green LEDs indicate a short between a PV (photovoltaic) lead and earth OR a partial short of the element to earth. Wait at least 20 seconds after any disconnection or other correction step for the LEDs to stop flashing.
• If you are having DC power supply issues, check if the DC circuit breaker or isolator is faulty by measuring the voltage across the DC circuit breaker or isolator whilst DC power is being supplied to the element. If there is a voltage drop across the disconnect switch, it is faulty and needs to be replaced. Also check all DC fuses if installed.

Troubleshooting Steps

1. 🞏 Confirm correct wiring and polarity to Elon®. Also confirm test meter wires are connected correctly, black to common!
2. 🞏 Confirm correct voltages and currents of all connections through the following steps:
   • Confirm open / closed thermostat voltages (11 – 14 V DC open, 0 V DC closed).
   • Confirm controller wire is connected properly. The connections should “click” into place and appropriate LEDs should indicate (be active).
   • With solar power to element switched on (green LED flashing), confirm same DC voltage to element as measured at solar terminals.
   • With DC clamp meter confirm that there is an active current through element.
   • With mains power to element switched on (red LED flashing), confirm same AC voltage to element as measured at mains terminals (should be approx. 230V AC).
   • With AC clamp meter confirm active current through element of between 9 and 18 Amps depending on element rating.
3. 🞏 If you used a test controller for troubleshooting, remember to plug the wire from the installed controller back into the Elon® and check functioning. Set thermostat back to original setting.

Appendix B. Solar yield

Note: only basic information is provided here. Your solar PV installation design engineer or technician should advise on the best configuration for your specific location, roof structure, etc.

The yield produced by solar PV modules depends on several factors:

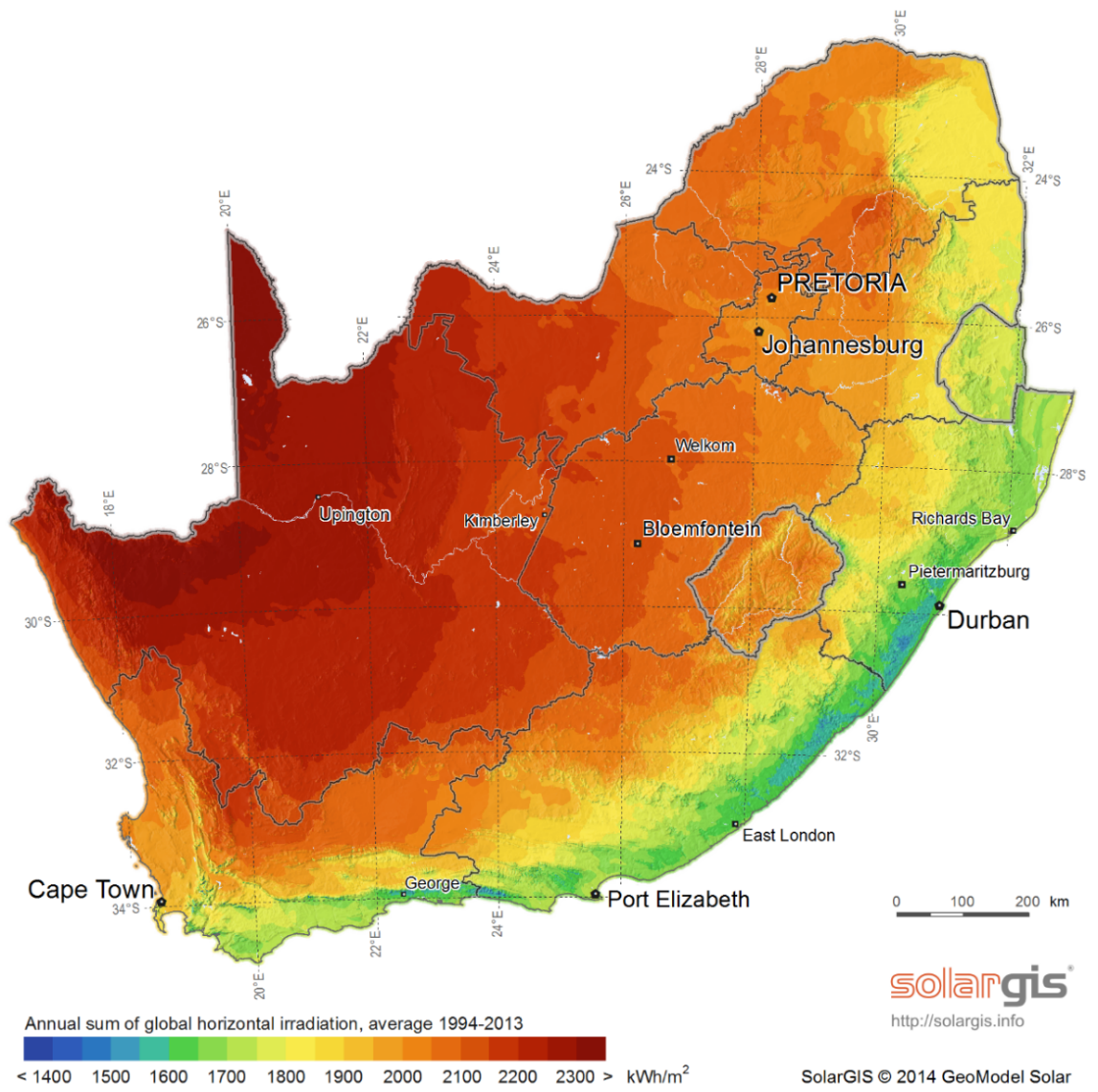

• Solar irradiance levels at your location (which varies with time of day, season and weather conditions)
• Geographic features at your location (e.g. mountains or buildings causing morning or afternoon shade)
• Azimuth and tilt of the modules
• Shading
• Ambient temperature (also influenced by wind)

B1. Solar irradiance levels

The map below shows the general solar irradiance levels (GHI or Global Horizontal Irradiance) in South Africa^[1]:

You can expect the following approximate energy generation from solar modules for various locations^[2]:

B2. Geographic features

Major geographical features (such as hills or mountains) can reduce the total solar yield.

B3. Azimuth / horizontal angle

The azimuth refers to the horizontal orientation of the modules – in the Southern Hemisphere, by how many degrees they are oriented away from north

Due north is best in the Southern hemisphere. Modules should preferably not be oriented more than 15º away from due north.

B4. Inclination or tilt angle

The tilt angle refers to the vertical orientation of the modules – a rough guide is that the modules should be tilted at the site’s latitude. For example, Musina is 22º S, Pretoria & Johannesburg are 26º S, Bloemfontein is 29º S, Durban is 30º S and Cape Town & Port Elizabeth are 34º S.

To optimise winter performance, one can add 15º to the tilt angle. (Note: as long as you are within about 15º of the optimal latitude, the loss in efficiency is not substantial.)

B5. Shading

Solar modules lose a lot of efficiency if even a small part of the module is shaded. For example, just 3% shading can cause a 25% loss in power! Shaded cells on a module also causes hotspots, which will reduce module lifetime.

It is thus important to place the solar modules on a rooftop area that is free from shading for as much as possible of the day (and throughout the year).

B6. Ambient temperature

Solar PV modules’ performance decreases with increasing temperature. Wind will reduce the temperature of the solar array and will thus improve performance. Thus, it is important to install rooftop solar modules with an air gap of at least 40 mm between the modules and roof^[3].

B7. Minimum distance from roof edges

Your solar PV design engineer should prescribe minimum clearance from roof edges that should be maintained for your area based on climatic and wind conditions. Typically, a minimum clearance of 20 to 30 cm should be maintained.

Appendix C. Deciding on Size of Solar Array

Terminology used

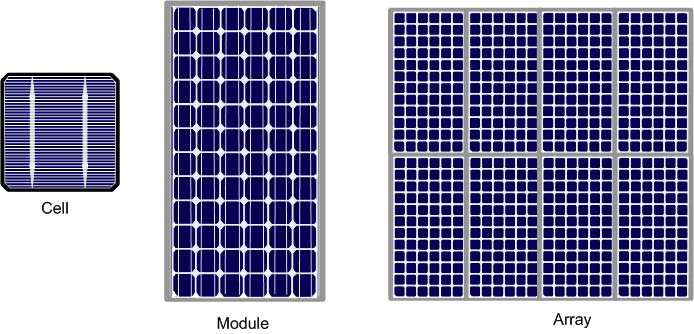

Solar power is generated by solar cells, which are arranged in framed modules, typically of 60 or 72 cells each. The total set of solar PV modules installed is referred to as a solar PV array^[4].

The table below provides a basic guide to selecting the size of the solar PV array based on number of people in the household and/or hot water use. Minimum recommended size is 1 kW_p. Read on for a more detailed guide.

Solar PV array size (kWp)	Showers per day*	50%+ of daily hot water use provided for how many people?	How many people off-grid for hot water?	Typical number of solar PV modules
1 – 1.6				2 - 3 modules
1.6 – 2				3 - 4 modules
2 – 3				4 - 5 modules
3 – 4 (two parallel PV strings)				6 - 8 modules

* 6-minute showers at 40 °C with 8 litre/min (low-flow) showerheads

TABLE C1. ANNUAL AVERAGE LITRES OF WATER HEATED PER DAY

The below example table indicates the average number of litres of water per day that the system will heat from 15 to 60 °C over a year period for different solar array peak power ratings. (The amount of water heated will vary with weather conditions, by geographic location and by season. Water heated per day will be significantly lower in winter and significantly higher in summer. These numbers indicate heating capacity – i.e. if no hot water is used on a given day, there will be less water heated on that day. This is only an approximate guide.)

Example:

For a solar array of 1.2 kW_p, an installation in Johannesburg would yield about 1724 kWh/kW_p/yr, or 1724 x 1.2 kW_p = 2069 kWh/yr. This would be sufficient to heat on average 109 litres of water per day. For a family of 2 each using 80 litres of hot water per day, this would provide about 109 ÷ (80 x 2) or 68% of the annual hot water requirement.

TABLE C2. ANNUAL AVERAGE NUMBER OF SHOWERS PER DAY

The below table indicates the average number of showers per day for which the system will supply hot water over a year period for different solar array peak power ratings. (The amount of water heated will vary with weather conditions, by geographic location and by season. Water heated per day will be significantly lower in winter and significantly higher in summer. These numbers indicate heating capacity – i.e. if no hot water is used on a given day, there will be less water heated on that day. This is only an approximate guide.)

The table is based on 6-minute showers at 40 °C and 8 litres/min low flow showerheads. Old showerheads can use up to 15 litres/min and would substantially reduce the number of showers.

Example:

For a solar PV array of 2.5 kW_p, an installation in Johannesburg would yield about 1724 kWh/kW_p/yr, or 1724 x 2.5 kW_p = 4 310 kWh/yr. This would be sufficient for about 6 to 7 showers per day.

TABLE C3. PERCENTAGE OF ANNUAL HOT WATER REQUIREMENT

The below example table indicates what % of the annual hot water requirement will on average be supplied by the system for 2 people each using 80 litres of hot (60 °C) water per day. (The amount of water heated will vary with weather conditions, by geographic location and by season. Water heated per day will be significantly lower in winter and significantly higher in summer. These numbers indicate heating capacity – i.e. if no hot water is used on a given day, there will be less water heated on that day. This is only an approximate guide.)

Examples:

An array of 1.2 kW_p will provide approximately 64% of the annual hot water requirement for a family of two people in Cape Town.

An array of 2 kW_p will provide approximately 124% x (2 people / 4 people) = 62% of the annual hot water requirement for a family of four people in Bloemfontein.

Appendix D. PV array and geyser (water heater) element matching

It is important to match PV array specifications and heating elements for maximum power transfer efficiency. See the below table for the recommended heating element power rating for different solar array sizes.

Contact PowerOptimal for advice on module-element matching if module properties are significantly different to typical values or for advice on bifacial, high current & high voltage modules.

TABLE D1. GUIDE: PV ARRAY AND GEYSER (WATER HEATER) ELEMENT MATCHING

* Second choice element size would reduce efficiency by 10 – 20%.

DO NOT DEVIATE FROM THE RECOMMENDED MODULE-ELEMENT MATCHING CONFIGURATIONS WITHOUT CONSULTING POWEROPTIMAL.

Maximum allowed solar PV array specifications at Standard Test Conditions (STC):

I_sc < 20A V_oc < 250V Power < 4 kW_p

Appendix E. Technical Specification Summary: Elon® 100

Refer to the PowerOptimal website for the full Technical Specification www.poweroptimal.com/specifications

It is important to match modules and heating elements for maximum power transfer efficiency. See the tables in Appendix D for the recommended heating element power rating for different solar module specifications and array configurations.

Appendix F. Surge Protection Device (SPD) Recommendations

This Appendix outlines under which circumstances a Surge Protection Device should be installed as part of a solar PV system installation such as the Elon® 100.

F1. SANS 10142-1 The wiring of premises Part 1: Low-voltage installations

Please note: compliance with SANS 10142-1 is compulsory for all electrical installations as per the Occupational Health & Safety Act.

SANS 10142-1 states the following with regards to surge protection:

6.7.6 Surge protection

6.7.6.1 Surge protective devices (SPDs) may be installed to protect an installation against transient overvoltages and surge currents such as those due to switching operations or those induced by atmospheric discharges (lightning). NOTE A risk assessment may be performed in accordance with annex Q. The Installation of SPDs is necessary where structures are equipped with external lightning protection systems (LPS) as in accordance with SANS 10313.

As can be seen above, surge protection is optional and based on a risk assessment as per Annex Q.

The risk assessment is as per the following table from SANS 10142-1 (2020):

Note that the “Service Line” referred to above is the incoming (AC) line for the house.

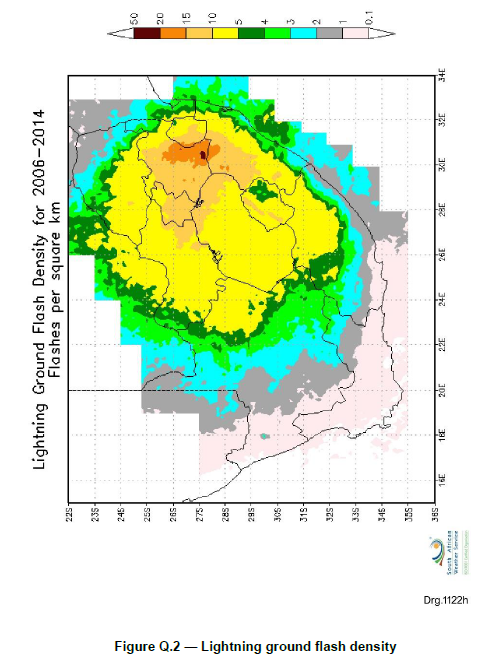

Here is a lightning density map for South Africa as provided in SANS 10142-1:

F2. Draft standard SANS 10142-3 Proposed Interim Guideline for the wiring of LV grid-embedded PV installations not exceeding 1000kVA in South Africa

Please note: this is only a draft standard and compliance with this standard is not compulsory. It is only provided for information purposes.

The draft standard SANS 10142-3 requires a Surge Protection Device to be installed where the length (L) of the DC cables (from PV array to Elon® 100 or inverter) exceeds the critical length Lcrit as follows:

A Surge Protection Device is required where L ≥ Lcrit

The critical length Lcrit depends on the type of PV installation and is calculated according to the following table:

where Ng = lightning strike density (number of strikes/km²/yr)

The length of DC cables L is the sum of:

• distances between the inverter(s) and the junction box(es), while observing that the lengths of cable located in the same conduit are counted only once, and
• distances between the junction box and the connection points of the photovoltaic modules forming the string, observing that the lengths of cable located in the same conduit are counted only once.

For the Elon® 100, distance L is the length of DC cables from PV array to the Elon® 100.

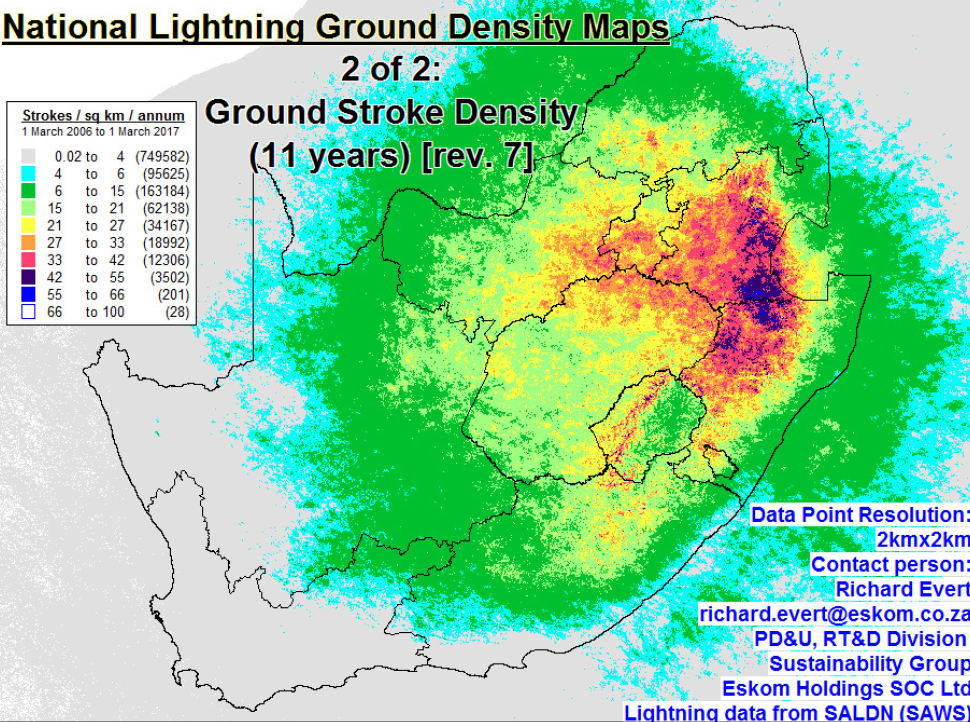

On the next page is a national lightning ground stroke density map for South Africa^[5].

From this map, the lightning strike density (Ng) range for major cities are as follows:

From Evert & Gijben (2017).

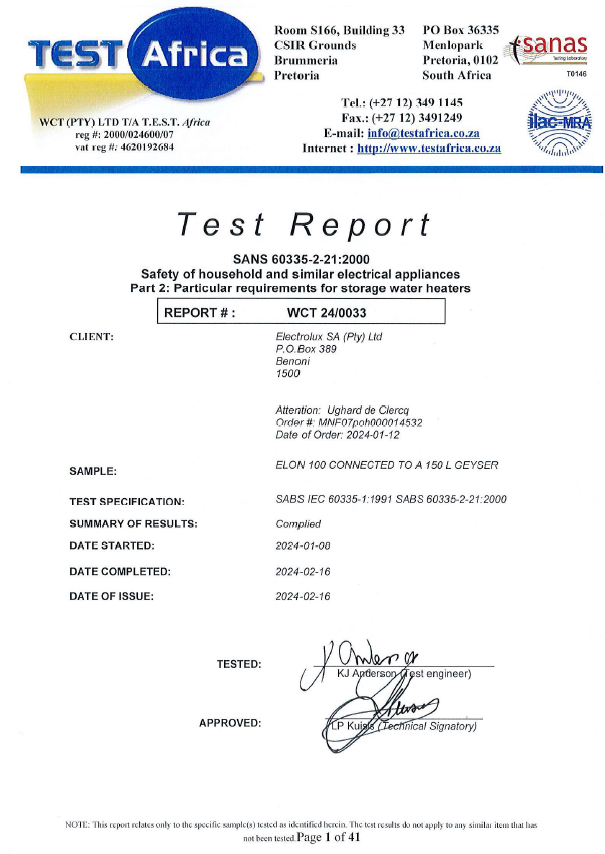

Appendix G. IEC/SANS and EMC Test Certificates: Elon® 100

Appendix H. Warranty

If the PowerOptimal Elon® 100 (“the Product”) is found to be defective, you will be entitled to a repair or replacement within 2 (two) year of the date of delivery of the Product to you. Please keep your receipt as proof of purchase. If you are a consumer as defined in the Consumer Protection Act No. 68 of 2008 (“the CPA”), you will be entitled to such remedies as are made available under the CPA in relation to the return of goods.

PowerOptimal will not have any liability or obligation to you where the Product has been subjected to abuse, misuse, improper use, improper testing, negligence, accident, alteration, tampering or repair by a third party.

To the maximum extent permitted by applicable law, in no event shall PowerOptimal be liable for any special, incidental, indirect, or consequential damages whatsoever, including, without limitation, damages for loss of business profits or business interruption, arising out of the use or inability to use this product.

Please note that this unit must be installed by an electrical contractor registered with the Department of Labour. Failure to do so may invalidate this warranty. Please keep the CoC (Certificate of Compliance) issued by the electrical contractor on completion of the installation.

Appendix I. Terminology

AC Alternating Current – an electric current that reverses its direction many times a second at regular intervals, with voltage typically varying in the form of a sine wave.

CoC Certificate of Compliance – to be issued by the electrician installing your Elon® 100 system

CPA Consumer Protection Act No. 68 of 2008

DB Distribution board – the main electrical distribution board / panel in your home, containing circuit breakers and switches.

DC Direct Current – an electric current flowing in one direction only. Solar PV modules produce direct current electricity.

Geyser South African term for a water heater

IEC International Electrotechnical Commission

I_mpp The solar module current at maximum power point (MPP). Manufacturers usually report two I_mpp values: one at STC and one at NOCT.

kWh A derived unit of energy equal to 3.6 MJ (megajoules). The amount of energy used by a 1 kW electrical device over a period of 1 hour.

kW_p or W_p The peak power rating in kilowatt (kW) or watt (W) of a solar module or array – i.e. the output power achieved under full solar radiation. This is usually reported at STC and NOCT.

MPP Maximum power point. This is the point on a solar cell, module or array’s power or I-V (current-voltage) curve that has the highest power output.

NOCT Nominal Operating Cell Temperature (also sometimes referred to as NMOT or Nominal Module Operating Temperature). This refers to the temperature that open circuited solar PV modules will reach under conditions that more closely match actual field operational conditions than STC. The modules are tested at 800 W/m² simulated solar irradiance, 20 °C ambient temperature, 1 m/s wind velocity and open back side mounting. Depending on the quality of the cell / module design, the NOCT can reach anything from 33 to 58 °C^[6]. Since solar PV cell power output reduces with increase in temperature, a lower NOCT is better.

PV Photovoltaic – referring to the production of electric current at the junction of two materials exposed to light.

SANS South African National Standards

STC Standard Test Conditions for solar cells – 1000 W/m² simulated solar irradiance and 25 °C solar cell temperature, and an air mass 1.5 spectrum (AM1.5).

V_mpp The solar module voltage at maximum power point (MPP). Manufacturers usually report two V_mpp values: one at STC and one at NOCT.

Notes

1. CRSES (Centre for Renewable and Sustainable Energy Studies). Website: http://www.crses.sun.ac.za/files/research/publications/SolarGIS_GHI_South_Africa_width15cm_300dpi.png. Last accessed: 07/04/2017. ↑

2. Urban Energy Support. Website: http://www.cityenergy.org.za/uploads/resource_274.pdf. Last accessed: 07/04/2017. ↑

3. D’Orazio M et al. 2013. Performance assessment of different roof integrated photovoltaic modules under Mediterranean Climate. ↑

4. Image source: http://ohioline.osu.edu/factsheet/AEX-652-11. ↑

5. Evert CR, Gijben M. 2017. Official South African Lightning Ground Flash Density Map 2006 to 2017. ↑

6. Source: http://pveducation.org/pvcdrom/modules/nominal-operating-cell-temperature. ↑
